Nema34 10.5Nm Hybrid Servo DSP 3ph Closed-loop Stepper Motor Driver Kit & 3meter Encoder Cable CNC

Description

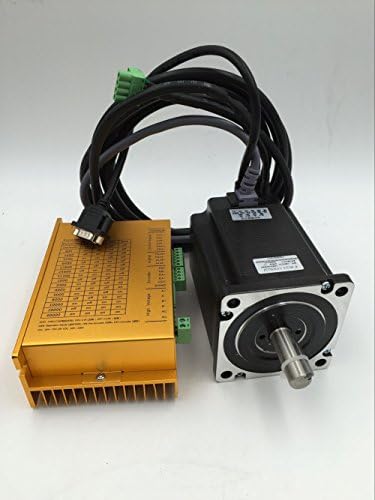

Nema34 10.5Nm Hybrid Servo DSP 3ph Closed-loop Stepper Motor Driver Kit & 3meter Encoder Cable CNC Package Included : 1 x 2phase NEMA34 Closed-loop stepper motor LC86H2128 1 x 2phase closed loop stepper motor driver LCDA86H 1 x 3M Encoder Cable&Power Cable Application: It is suitable all kinds of Small and medium-sized automation equipment and instrumentation.Such as carving machine, wire-stripping machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, etc. This is efficient for the equipment with Low noise and high-speed. Stepper Motor Specifications : Phase : 2phase Holding Torque : 10.5N.m Current : 7.5A Motor Length : 158MM Encoder PPR : 1000PPR Motor Driver Specifications and Features : Model : LCDA86H working voltage : 20-70VAC/30~100VDC peak current : 6A control mode : 32 bits DSP closed-loop vector control technology Pulse limit frequency : Defaulting 200 KHZ/500 KHZ (optional) defensive function : Over-current, over-voltage and tracking error out-of-tolerance alarm incoming signal : Pulses, direction and enable signal outcoming signal : In position signal and fault output signal motor encoder feedback : AB differential input subdivisions : The default 4000/rev, through debugging software can install arbitrarily subdivisions(200-51200) storage temperature : -20-80 degree centigrade Ambient Temp : 0-50 degree centigrade Ambient thumidity : 40-90RH parameter setting : Static current, subdivisions, effective along, fault signal output signal level, position loop and current loop and parameter settings.
